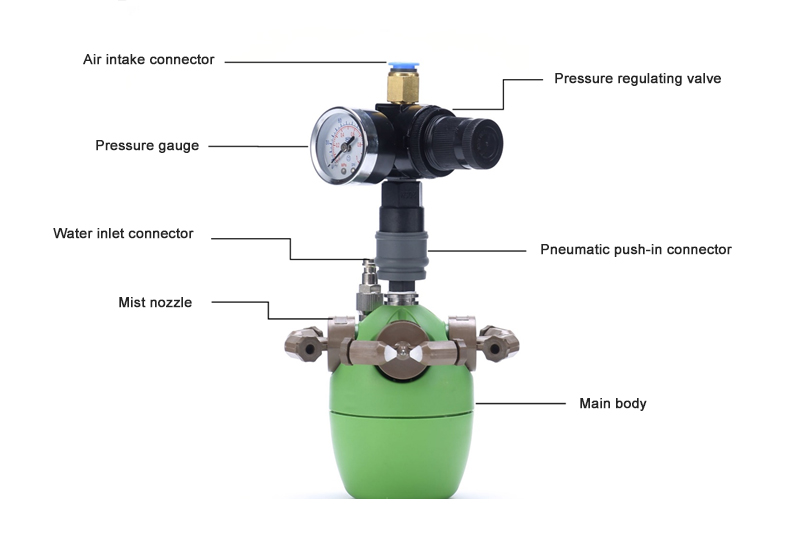

Humidifying Bulb

Features

The humidifying bulb is light and does not take up space.
Large spray volume, it is not easy to be blocked or dripped after long-term use.
The principle of air atomization is an air-water mixed atomization technology.
The fog is more delicate, which effectively improves the air quality and balances the air dryness.
Stable performance, not easy to be blocked, easy maintenance and long service life.
The water is atomized into fine particles by compressed air, which evaporates quickly and the humidity is effective immediately.
The pressure gauge is a controllable pressure setting, flexible adjustment and stable performance.
Humidification in the warehouse can reduce printing errors, uneven coloring of printed matter, and paper warping.
Prevent dryness and static electricity: prevent electrostatic breakdown and dust adhesion due to static electricity, and prevent drying.
Cooling effect: The dry mist will absorb heat during the evaporation process and lower the surrounding temperature.

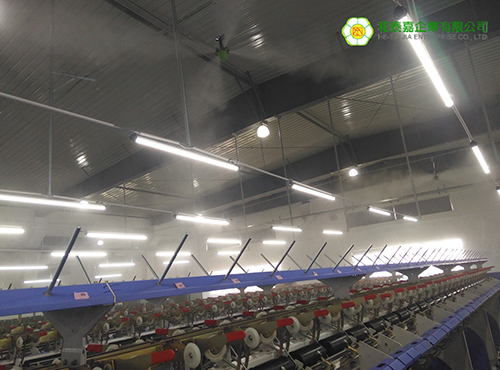

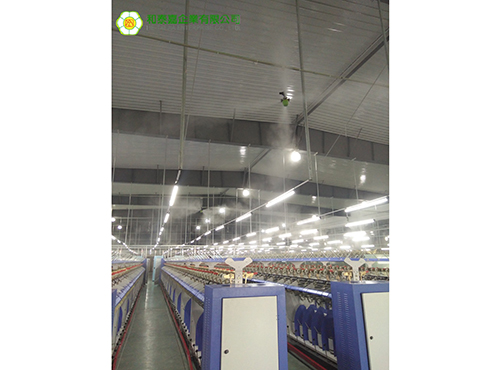

Reduce the trouble of bending the textile fiber membrane and reduce the entanglement of raw material velvet on the machine to eliminate static electricity.

Specification

Model HTJ76-09A
Humidification amount 8-10 KG / H
Air consumption Air pressure 0.2 Mpa 0.090 m3 / min
Air pressure 0.3 Mpa 0.120 m3 / min
Air pressure 0.4 Mpa 0.149 m3 / min
Air pressure range 0.3 - 0.4 Mpa
Installation interface Gas line G1 / 2 ( 4 points ) ф 10 mm
Waterway G1 / 2 ( 4 points ) ф 8 mm
Product size 110 * 125 * 77 mm
Way to control automatic control / manual
Water inlet method Automatic control
Spray particle size 5 - 10 μm ( Average )
Product weight 310 g ( Anhydrous )
